I started out today by removing the bottom cowling, then spending a fair bit of time assessing and evaluating just how and where I needed to cut the left outboard exhaust pipe to get the aft half into its proper position.

After finally deciding where I needed to cut it and on what angle, I marked the cut line.

I then removed the left outboard exhaust pipe and ran a piece of tape with the edge at the center of the cut.  I then marked the angle on each side of the center cut line that in my estimation would bring the aft end of the pipe down close to level with the front end, and allow it to pair up decently with the inboard exhaust pipe.

As you can see below, I then carefully cut the pipe on the angled lines off the marked center cut line.

I then taped the left outboard exhaust pipe pieces tightly together at the cut… Voila! Pretty darn close to where I wanted it!  To be fair, I was trying to get it about an 1/8″ higher so this pair of pipes would be angled more like the right side pipes.  But no worries, this will work!

As a reminder, this is close to what it looked like when I started.

And a side shot of the cut and tape re-joined left outboard exhaust pipe.  This definitely meets my overarching goal of getting the pair of left exhaust pipes positioned at the correct elevation inside the cowlings and somewhat closely nested together.

And again, this is what the pipes looked like just before I made this cut.

I also took the opportunity tonight to add a little depth to the bottom cowling at the point where the left outboard exhaust pipe first major bend is closer to the cowling… at the hash-marked area.

I cut out the hash-marked area with the Fein saw.

Now, the key to understanding what I’m doing here —very hard to show in pictures— is that there is an upward indention from the outside of the bottom cowling from where I reworked the aft half of the bottom cowling.  This creates a bit of ridge on the inside of the cowling, which is right beneath the initial bend of the left outboard exhaust pipe.  I’m essentially removing that inside cowl skin ridge and flattening it to get a good 0.1″ minimum added clearance for this area of the exhaust pipe…. probably a hair more than 1/8″ in total clearance.

Also, if you look closely on the aft aluminum vane outboard edge you’ll see a Sharpie mark (pic 1)… this is the edge that needs to be trimmed just a hair (also for clearance with the left outboard exhaust pipe), which I did with the Dremel tool and then cleaned up the edge with some files (pic 2).

I then prepped the exhaust pipe clearance hole in the bottom cowling for a layup.  I measured and cut 2 plies of CF, prepregged them, and then laid them up with some MGS epoxy.

I then peel plied the exterior side of this 2-ply CF layup.

And also the exposed CF layup on the inside of the exhaust pipe clearance hole.

Tomorrow I’ll pull the peel ply, smooth out the edges of the existing cowling surface around the new CF layup, and then layup a ply of CF on the inside of this bottom cowl exhaust pipe clearance layup.

I’ll most likely get the outboard exhaust pipe welded up either Monday or Tuesday, so between now and then I’ll get to work on some other stuff!  Pressing forward . . .

Today was another exhaust pipe welding day.  I loaded up my vehicle and made the hour trek to James’ shop to the get the inboard left exhaust pipe for cylinder #1 welded up.

As I said in yesterday’s blog post, this was a 2-weld job since the exhaust pipe at this point was in 3 segments.  Here’s a shot of these segments on James’ workbench ready to be welded up.

And here is the inboard left exhaust pipe —both sides shown— many hours later back in my shop after James’ excellent job of welding it up.

The sharper initial curve angle, that I had discussed with both James and Clinton from Custom Aircraft Parts (original builder of these exhaust pipes), is required for clearance of the pipe off the bottom cowl.  It looks even sharper because the curve on the original exhaust pipe continued downward for a good 1/4″ or more before coming back up level… that’s why that small segment of straight pipe had to be welded into place at a sharper angle: to replace the downward curved section.  The angle will have negligible, if any, negative impact on the exhaust flow.

Here is the freshly welded left inboard cylinder #1 exhaust pipe mounted in place on the engine.

And here’s a shot of that pipe from below… the sharp bend now being the low point vs the pipe segment 2-3″ aft of that bend.

I then put the bottom cowling back on to check the elevation of the welded left inboard exhaust pipe compared to what I was looking for.  As you can see, the pipe is just kissing the wood spacers that I had taped in place for where I wanted the aft pipe edge to be (pic 1).  I then removed the wood spacers to show the gap without them (pic 2).

I then spent another hour assessing both the clearances between all the pipes and the bottom cowling and EGT probe positions.  In addition, I also assessed what needs to happen now with left outboard pipe to angle it down and inboard to nestle it in with the inboard exhaust pipe.

On clearances: I decided I won’t need the significant bump out or divot in the bottom cowling for the outboard left exhaust pipe as I thought, since it sits right on the seam from the old cowl surface to the new cowl CF that I reworked.  By just reworking the seam I should get about another 0.1″ of clearance without have to make any notable bump on the exterior side of the cowl.  However, the initial elbow on the right inboard exhaust pipe is even closer than this cylinder #3 pipe, so I will need to flush that out and assess further.

At this point my brain was hurting from so much thinking, so I called it a night.

I started off quickly brushing on a couple rounds of flat clear coat to the areas I hand painted around the GIB headrest & D-deck gap cover… to get that knocked out.

Actually today was all about getting the left inboard exhaust pipe mating surface trimmed at the proper angle to seat against the 90° elbow portion of the exhaust pipe that is bolted onto the cylinder #1 exhaust port.

This is one trimming session of 3 total that I did, after a good 10+ minutes of assessing height, angle, standoff from spinner flow guide, etc. in between each round of trimming.

Here we have the final trim of the left inboard exhaust pipe.  After I dialed in the angle and position, I texted James to see if he would be available tomorrow to weld this up.  I’ll note that there are actually 2 welds that need to happen here, since under that ring of black tape is another spot where the pipe is cut in two.

BTW, James did say he was available so the plan is to get this exhaust pipe welded up tomorrow… Hoo-ah!

After another 45 minutes assessing the exhaust pipes and upcoming aft engine baffle construction, I closed up shop and headed out to dinner with Jess to relax for a bit.  Just before dinner I finally picked up some #6 SS hex button head screws for the GIB headrest & D-deck gap cover.

Upon my return home later, I mounted the GIB headrest & D-deck gap cover with the screws I had just acquisitioned a few hours earlier.  Here’s how it all looks.  Not too bad, in my opinion!

And some closer up shots each side.  Can you pick out the areas that were hand painted?  Hopefully not!  I do need to still do some minor sanding and tweaking around the edges, as well as fix the rough edge on the one side… but overall?  I’m pretty darn pleased with how it turned out.

I then spent a good half hour plus removing the tape and cleaning off the gunk, as well as cleaning up the mating edges of the different left inboard exhaust pipe pieces in prep for them getting welded up tomorrow.  I then called it a night.

Today was the day I FINALLY kicked off my long-overdue exhaust pipe welding plan with James.

But first I pulled the heat lamp off the CF layup on the right side cold air induction pipe bump, and then pulled the peel ply.  I then cleaned up all the peel ply boogers.  As you can see, there is still a very slight bump from the original bump in my added foam fairing, but I will mitigate that with both some aggressive sanding and added micro when finishing.  Overall, not bad and definitely does the job in both adding needed clearance for the aft right cold air induction pipe, and not creating a heinous goiter on the side of the bottom cowling.

While the bottom cowling was on, I remembered to grab a shot of the newly angled aft oil cooler exit.  Not crazy distinct in nature here, but definitely a significant angle created.

I then did a very final assessment on the left outboard (cylinder #3) exhaust pipe position before pulling a good bit of the duct tape off the pipe that was securing the cut exhaust pipe to the engine-side elbow.  I then marked the position as best possible across the hose clamp.

I then removed the bottom cowing and both left exhaust pipes from the engine.

Now, with that duct tape on there for a LOT of months, it required about 30 minutes more than I was planning on to get it off there and cleaned up.  Cleaning all the tape gunk off the exhaust pipe made me a bit later getting to James’ home shop than I had planned on, but all was good (I’ll note the drive from my place to his is right at about an hour).

After we bantered about a bit on the exhaust pipe welding plan, airplane homebuilding and military war stories, James dove right in on welding up the first weld on the cylinder #3 exhaust pipe.  Again, this is James’ home shop and I noted right off the bat that this guy —who welds up race car exhaust headers for a living— has the exact same TIG welder in his home shop that I do!  That made me feel like I’ve made at least one right decision along the way… ha!

Here’s James’ beautiful TIG weld on the cylinder #3 exhaust pipe.  Note the pink cap… the other end of the pipe is capped as well and is flooded with inert gas on the inside as the pipe gets welded.  This creates a strong, clean, porous-free weld.  Again, even if I was inclined to tackle this welding, I would need a setup like this to do it (we’re talking a decent bunch of $$$ for essentially a one-time task).

As James was welding up the pipe I of course was not directly watching what he was doing with no welding helmet on, so I wandered around his shop a bit.  James has a huge Grizzly bandsaw in a central location along the wall of his shop, but over in the corner he had this smaller Grizzly bandsaw.  Since my small Skill bandsaw has never been a top performer, I noted this G0948 model in the corner and thought that it looked like a perfect size for what I need, since I honestly don’t do a ton of bandsaw work.

As we were talking after James finished welding up the exhaust pipe, I asked him how he liked this smaller bandsaw in the corner.  He said a friend of his bought it new, never used it, gave it to him and it’s sat in the corner unused for 2 years now.  He offered it to me for a steal, practically giving it to me, and I of course couldn’t refuse (remember, I’m cheap!)… so into my vehicle it went.  Hopefully my bandsaw woes are behind me now! <grin>

From James shop I drove into town and spent some time there, grabbed a bite to eat and then finally got home later in the evening.

I mounted the freshly welded #3 cylinder exhaust pipe onto the engine, and it looks great.

I then mounted the bottom cowling into place.  Here we have the clearance between the armpit intake aft ramp/vane with the #3 cylinder exhaust pipe without the tape and hose clamp in place.  I plan on trimming about another 1/8″ off the outboard edge of the vane, and then we’ll be good on clearance.

This shot here shows the area I was most concerned about on this round of welding up the #3 cylinder exhaust pipe.  I wanted to get the pipe as high off the bottom cowling in this area as possible.  My measurement on the aft side of the pipe (right side of pic) was 0.7″ from the exhaust pipe to the 3rd fin in on the aft bottom corner of the #1 cylinder.  When I measured it here that gap was 0.65″… perfect!

I’ll work the left inboard pipe next, and get it welded to its bare elbow sticking out of cylinder #1.  After a round or two of welding on the inboard left exhaust pipe, then I’ll come back to the outboard pipe again and get it situated.  Note the approximate distance from bottom cowl to where the bottom pipe end opening edge should be… about at the top of the wood spacers.

Here’s a better look (sorry for the fuzzy pic)… you can see right about where the outboard pipe meets the starting elbow of the inboard pipe is where it will need to get turned downward and slightly inward.

This pic shows that even a bit more… I set the inboard pipe loosely in place, close to its final exit elevation.  See how the outboard pipe will need to get angled down and inboard a bit?

And a shot of this with the top cowl in place, which really shows you what machinations need to take place to get these left side exhaust pipes wrangled into place.

But how do we eat an elephant?  One bite at a time!  And that is exactly how these left side exhaust pipes will get configured into the final positions they need to be.

Pressing forward!

I started out today by doing a final sanding in the area around the bottom cowling right side bumpout that will provide needed clearance for the aft cold air induction pipe.

I then made up a pour foam dam in preparation for the foam.

Since this part of the cowling is on a curve, and any liquid —including pour foam— seeks a level plane, I needed to use a bit more pour foam than I would have wanted to.  It’s hard to judge on this stuff sometimes, and I definitely wanted a bit too much than too little… and that’s what I got.  I didn’t want any pour foam seams here.

I don’t have any shots of it, but last night I dabbed on some coats of primer on the hard-to-reach unpainted areas around the GIB headrest and inside turtledeck.  During this half hour waiting period for the pour foam to cure, I sprayed some gray rock paint in a cup, added a little bit of micro to thicken it while also adding a little bit of Acetone to thin it (yes, these may seem like opposing actions, but it needs both to still be a pain to apply with a brush).  I then added a sloppy coat of the gray rock paint over the previously applied primer.

I also contacted my welder James and let him know that I was ready to kick off our exhaust pipe welding adventure.

I then got back to work on the bottom cowling right side cold air induction pipe clearance bumpout.  I trimmed off the front and aft peaks of the pour foam before pulling off the dam.  Although I had way more pour foam than I needed, at least it was a good pour and an all in one go.

I then spent the next half hour removing nearly all the pour foam: trimming, sanding and shaping it down to just even with the CF bump I made yesterday.  I then sanded and Acetoned the edges and vacuumed the foam in prep for a ply of CF.

I then made a quick plastic sheet template of the foam shape to cut out both a ply of CF and a piece of peel ply.

I then whipped up some Pro-Set epoxy, wet micro’d the foam and laid up the 1 ply of CF.

I then peel plied the layup.

I then applied another coat of blotchy grey rock paint (this stuff does NOT like going on with a brush) around the GIB headrest and inside turtledeck, and then cleaned up my paint project before heading into the house to upload these pics.

About an hour later I went back out to the shop and mounted the bottom cowling on the bird. I then spent a good 20 minutes assessing the final position for the outboard left (cylinder #3) exhaust pipe.

Since the nights are getting much colder here now, I also put a heat lamp on the layup just to maintain a decent level of warmth overnight.  I then left it to cure overnight.

Barring any curing issues, this pretty much completes the task of creating clearance for the right aft cold air induction pipe.  That leaves 2 final major tasks on the bottom cowling:  1) a clearance bump on the left side bottom cowling for outboard/cylinder #3 exhaust pipe, and 2) a cross rib baffle/stiffener once the lower aft baffling is in place.

And with that, I called it a night.

Although I started out today working on the GIB headrest-to-turtledeck gap cover, I ended my shop time working again on knocking out some final bottom cowl tasks.

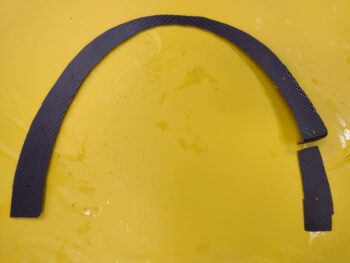

Yesterday I used a big sheet of yellow vinyl to place the single ply of laid up CF face down on, then weighed it down with a myriad of stuff: steel sheets, wood blocks, cordless drills, and epoxy cans to get the flat, even surface of finished CF… without a rough peel ply texture nor an even rougher, bumpy no-peel ply natural cured finished.

I had concerns with how the CF weave would turn out when I flipped it face down.  With a decent amount of excess epoxy to ensure the surface would come out smooth, the epoxy grabbed the vinyl a bit and pulled on the just laid up ply of CF and ended up putting a bit of a wave in it vs the straight diagonal line I was shooting for.

Moreover, when I pulled all the weight stuff off and then the cover off the yellow vinyl this morning, somehow there was an actual strip of the layup that didn’t get weighed down properly.  See the outside right edge about middle of the pic below?  What the…? BTW, clearly these pics were taken after an initial razor trim of the CF layup.

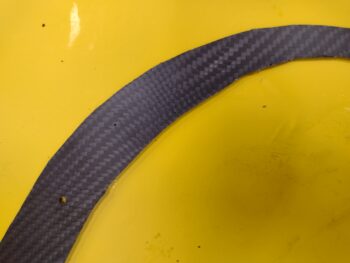

Since this was my first time attempting this type of flat, even-surfaced CF layup, to bring about this finished look post-layup —without multiple rounds of applying epoxy or clear coat with even more multiple rounds of wet sanding— I had a backup plan with some CF vinyl ready to apply over the top of this in case it turned out bad, or as Jess jokingly calls things, “an actual turd!” (usually houses on Zillow!)…  which at first I thought the CF on this cover turned out to be.
[Note: this was also a test run for this type of layup that I may employ on the more visible inner cylinder baffles to make them look as sexy as possible <wink>]

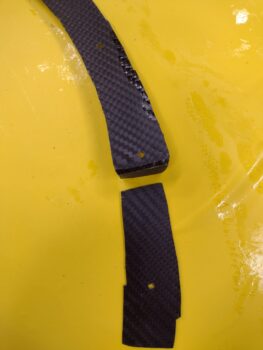

I still needed to shape the edges and get it mounted back in the gap around the GIB headrest, regardless if I was going to cheat and use the CF vinyl that was now in the shop and ready to be pressed into service.  However, once I got the the cover in place —a good hour of test fitting, trimming/sanding, repeat— the weave honestly wasn’t horrible (or an actual turd! haha).  Mainly because the slight curve of the weave is fairly symmetrical, at both left and right “upper corners.”

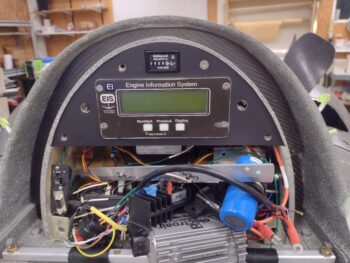

The cover is far from perfect, but it clearly does its job in covering the unsightly fuel vent lines behind it, and the weave of the CF while not straight and factory finish looking is real and a product of my effort, so I think I’ll fix the blemished edge and call it good… AKA: this dog will hunt!

Below are closer up shots of each side… not a perfect edge in getting the CF trimmed and sanded down for the cover to fit back into place, BUT it will not hinder the airplane from flying, makes this area look 10x better, and has a nice contrast… so again, I’m pressing on to more important tasks on this bird!

One final point of note on this cover: Yes, it’s cosmetic and in no way would hinder me from flying this airplane in any way.  So why create it now when there are so many important flight-related tasks that need to be completed?  Because, analogous to wheel pants, if I didn’t complete this now I’d be flying around for a good 6 months to a year+ with an unfinished, unsightly cabin component with me constantly saying, “Oh yeah, after this next trip I need to get around to doing that…” Nope! I want to get these seemingly small, time-busting innocuous things out of the way now and off the plate for good (Seriously, you’ve all seen this on peoples’ builds… especially with getting planes painted and out of primer 3-4-5 years after they’re flying) .

One of the half-dozen “final” tasks I have listed for the bottom cowl (not including finishing and painting) is something I never got around to after re-skinning the aft half on each side of the bottom cowl: sanding the newly laid up CF surfaces.

I took the bottom cowling outside and spent a good 45 minutes sanding down the lumpy and bumpy new-ish cowl surfaces with my DA sander.  Again, I didn’t sand the surface to 100% perfection, but I’d say a good 80% of the major lumps and divots were smoothed to greatly minimize the amount of micro fill required.  I also sanded the inside as well just to eliminate any roughness or peel ply lines in prep for laying in the bottom cross cowling rib baffle/stiffener, and to remove excess material just to lighten up the cowl as much as possible.

Here’s a shot of some my bottom cowl surface sanding and also the cured CF ply over the 2nd generation right side cowl bump to provide required clearance internally for the aft right cold air induction pipe.  Tomorrow I plan on adding & shaping pour foam, then contouring it to blend in as best possible with the lower right cowling before glassing it with a ply of CF.

Lastly, I pulled the peel ply, razor trimmed and cleaned up the now angled aft edge of the oil cooler exit on the bottom cowling.

The bottom cowl sanding and the completed angled oil cooler exit aft edge are 2 tasks off my bottom cowling to-do list.  Once I complete the right side bump-out for the cold air induction pipe clearance, that will be a third task completed.  The last major task on the bottom cowling will be a clearance bump on the left side for the cylinder #3 exhaust pipe.  After that, the final cowl tasks will be on the handful of items that need to be knocked out on the top cowling.

In addition, I plan on starting whole-hog on the exhaust pipes this coming week to get those finished up and configured nicely inside the mounted cowlings.

I started off today by pulling the peel ply and trimming up the layup that secured the halves of the GIB headrest gap cover together… yep, looks pretty much like it did before.

One glaring omission in this blog post is that I rolled right into cutting CF and laying it up on this GIB headrest surround cover… but didn’t grab a pic of it.  I’ll of course grab a shot of it tomorrow.

I then got busy knocking out a couple more tasks on the bottom cowling before I sink my teeth into the exhaust pipe configurations.

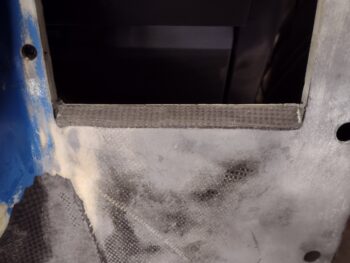

For the clearance bump on the right side lower cowling, I expanded the hole aft and up just a bit… by about 1/4″ each side.

I took a piece of cardboard, taped it up and stuffed it into the hole and taped it in place.  I then cut out a piece of peel ply for the face of the exterior cardboard bump form.

I then wet out the peel ply on the taped cardboard area before laying up a single ply of CF.

I then peel plied the CF layup.  To be clear, these pics look like an optical illusion to me, where they seem to show a depression in the side of the cowling, when in fact it is a bump outward… just in case these pics are playing tricks on your eyes too!

At RR I spoke with Terry Lamp, the builder of Marco’s Long-EZ JT, as we actually sat underneath the plane.  I had never really looked at the exit side of JT’s oil cooler and realized that the edges were all angled out from the oil cooler surface.  I asked Terry about why he did that… he stated that they claimed that it helped with better oil cooling by exiting the air out of the cowling/cooler in a more efficient manner.  He also noted that the only requirement was for the aft side, but he did the other 3 sides just to make it look the same on all sides.

Well, with JT’s great cooling characteristics, both in regards to CHTs and oil temps, I want to do everything I can to help optimize my cooling as well… so I followed suite and copied that oil cooler exit mod.  But only on the aft edge.

I started by marking the bottom cowl surface and the inside oil cooler support wall with about as much angled trimming that I could get away with.

Then I took my trusty Fein saw and lopped off the corner of the oil cooler exit aft edge.

I made flox corners on each side of the angle, filled those, and then filled the surface foam with some thicker micro.  I then laid up a ply of CF.

And then of course peel plied the CF layup.

I then turned the shop heaters up and left all these layups to cure overnight.

Today was a short shop day but I did get some coordination done as well as a bit of research of future capabilities.

I called my exhaust pipe welder, James, and ensured he was going to be around next week since I plan on starting on the left side pipes no-kidding Monday.  I want to wrap up some final tasks on the bottom cowling this weekend and press forward with the exhaust pipes next week.  If all goes well I’m hoping to have the exhaust pipe configuration saga put to rest in the next 1-2 weeks.

Out in the shop I started off by cutting the GIB headrest & turtledeck gap surround cover at about the 11:30 clock position before then remounting both sides.  With the wave that had resulted at the top middle area from pinning down both sides with the mounting screws, this cut was essentially a relief cut.  I then overlapped one side over the other and marked the edge of the front piece.  I had estimated about 1/4″ might need to come out, but it was less than half of that at just under 1/8″ to do the trick.

I then sanded about an inch on each aft edge side of the cut and cleaned the surfaces with Acetone.  I then laid up a ply of UNI and a ply of BID at the seam to rejoin the two sections of the cover.  I then peel plied the layup and left it to cure.

Switching gears… although I cut this small peek hole in the cowling before mounting it last night, I spent some time assessing it today.  Although I reworked the aft section of the bottom cowl skin I’m still not getting the clearance I want/need with the aft right cold air induction pipe.  I’m going to add a bump to increase the internal clearance by at least 1/4″ and then add a bit of pour foam and a ply of CF on the outside to hide it… yep, it has to be done.

Last night I was poking around my notes and online when I came across some info I had on the Aerovonics AV-30.  Yep, it’s been awhile since they were bought out by uAvionix.

I always liked the AV-30 and felt it had a lot of potential.  As a reminder, currently in my two 3-1/8″ instrument holes on my panel I have the Trio Pro Pilot autopilot and an older TruTrak ADI, which I installed to give me basic attitude awareness during initial flights and a backup AI for normal flight ops.

That being said, I’ve always had my eye on replacing my simple Tru-Trak ADI with something along the lines of the AV-30, which to be fair is a powerhouse PFD/MFD in its own right.  It already will drive the major basic control functions of my Trio AP by simply hooking up one wire (I called Trio to flush this out and since my unit is older it would require some firmware updates to get the AP & AV-30 talking to each other… since I can control the AP via the panel-mounted Trio AP control head it’s not worth it to me to spend the money for shipping and a firmware update for essentially TWO AP control heads when my primary means of controlling the AP will be via the GRT HXr EFIS).

Moreover, the AV-30 currently ships with a WiFi module that will pipe in traffic from my SkyRadar DX ADSB receiver on a separate screen while concurrently feeding my FlyQ EFB (and Foreflight) on the iPad with traffic updates, including updating ship’s altitude based on pressure altitude vs GPS altitude (while all other targets are based on Baro alt… pretty nifty).

Over a good number of years I’ve been like a shark swimming in the water in regards to the uAvionix AV-30… waiting for my prey to tire out and simply watching it from afar. Then I saw a quick little tidbit of someone talking to the uAvionix bubbas at their Oshkosh booth, it was a mere little flash since they wanted to blather on tirelessly about their TSO’d ADSB stuff. . .

This seemingly unworthy aside is where they announced IT (what I’ve been waiting literally years to hear): a new ARINC-429 module that will turn the AV-30’s current GPS-only CDI into a full blown HSI with vertical and horizontal guidance for ILS/LOC/GPS approaches straight from my GNS-480 GPS navigator.  This is huge and will not only give me a very capable backup AI/PFD for my GRT EFIS screens, but will allow me control over the AP (if I choose to update the firmware) and a very visible HSI for instrument approaches, especially as a backup HSI.  I’m pretty stoked about these capabilities and —again— have been watching for years to see if they would add them.

I called uAvionix to confirm this news and their tech said it would most likely be out within the next 6 months.  This is a great timeline for me since I plan on having the plane in the air, can flush out my panel requirements, and if I make the call I can most likely have the AV-30 installed in place of the TruTrak ADI in a few hours.  Plus I can have the few extra cross-connecting wires pre-wired in the panel to make this install a breeze down the road.

Pressing forward!

I started off today by pulling the peel ply, razor trimming the glass and cleaning up the layups that attached the right inlet’s aft ramp into place.  Everything looked good thus far.

I then cut a small strip of BID and laid it up on the inboard underside of the right side inlet aft ramp. I employed a thin micro fillet on this bottom side corner just for a little added strength.  To be able install the aluminum vane on this ramp in the ensuing hours, I used MGS with fast hardener.  With this layup the ramp installs are “officially” complete!

I then got to work figuring out the shapes and configurations of the aluminum vanes on the aft inlet ramps, both left and right.  I of course have the Mike Melvill templates for these, but as I’ve stated a number of times: with a different size engine and especially with cold air induction that drove minor moves in placement on nearly all these ramps, I certainly needed to tweak his templates for these aluminum top vanes to play nice with my engine.

I started with the stock template (pic 1) and then over a few iterations dialed it into the final vane configuration (pic 2).

I then did the same thing on the right side: stock aluminum vane shape (pic 1) and after modifications to allow for clearance with the aft cold air induction tube and exhaust pipe (which I realized after the bottom cowl was on that the aft exhaust was a major cast member in this critically acclaimed drama!… pic 2).

I spent a good little bit cutting out the aft ramps’ aluminum vanes from scrap baffle 0.032″ 2024 and then bending them on the metal brake.  I then removed the bottom cowl and hadn’t started on installing the vanes yet when I pulled the peel ply, razor trimmed and cleaned up the last layup on the inboard underside of the right aft ramp [pic looks the same as the layup pic did…].

I then trimmed, filed, drilled and clecoed the significantly modified (vs Melvill’s templates) aluminum vanes.  Sorry, I couldn’t resist filling in the dog profile on the right vane… after I loaded the pics I realized the left vane looked like a hippo! haha (… going shop crazy!).

I then pulled the plastic and did a final cleanup on the vanes before riveting them into place.  I guess I didn’t grab a shot of the left vane installed, but….

Here’s a shot of all the ramps and all the aluminum vanes installed on the lower cowling.  TASK COMPLETE!

I then installed the bottom cowling back onto the bird.  Probably as you’d expect, it takes a bit of jucking and jiving to finagle the bottom cowling into place now… it doesn’t just line up the flanges and plop on as it did before.

Here we have the left side aft vane in position, shot from both the side (pic 1) and from aft (pic 2).

And the same for the right side, with a shot of the vane from the side showing clearances (pic 1) and from aft as well (pic 2).  I will note that out of all these vanes, if any were prone to flex with my use of 0.032″ thick aluminum, it would be this one right here… since it’s quite a bit taller than the other vanes.  I’m making a note of it so if I ever think flex may be an issue I’ll swap it out with 0.04-0.05″ thick material.

I then grabbed a shot through the front side of the armpit scoops to show what each side ramps and vanes look like from head on.

With the exhaust pipes mounted for the first time since (I believe) I finished the top and bottom cowlings interface, I spent a good half hour assessing the right exhaust pipes’ configuration.  First, I determined that the gap between the spinner flow guide and inside edge of the first pipe (cylinder #2) needs to be 2.5″ (looking at 2.2″ on this dimension for the left side).

Next, even though the ends of the exhaust pipes appear too close to the cowling edges, if I trim them so the pipe openings are 2″ before the end of the cowling then elevation-wise they’re pretty much center of mass in the opening.  That being said, I may need some welding done just at the tips to get the actual exhaust pointed in the correct direction (more towards the spinner/prop intersection)… but beyond that: NO welding or redoing the pipes required on the right side!

The left of course is a whole different story.  I’ll need multiple iterations of cutting and welding these pipes to get them squared away in relation to the cowls… but with my exhaust welder James, I’m confident that over a week or two we can get this job done!

It was fairly late in the evening when I finally got around to pulling the GIB headrest gap cover (technically the “fuel tank vent lines cover”) off to check out the foam platenut tab installs.  As I did on the first 3 tabs I worked the screws in and out of the platenuts a good couple times before removing the cover.

Here we have the 2 new top foam tabs on the right side (pic 1).  And the added new top foam tab on the left side (pic 2).

Now, the final clamping —with the screws installed— of the thin cover added a little buckle to it towards the top, so I’ll need to trim out about a 1/4″ and re-glass it to remove that distortion.  After I get it (re)dialed in I’ll lay up the top CF ply and call it good!  BTW, there will be a strip of velcro on the very top dead center that will secure that portion and keep it from vibrating.

And after another long build day, I called it a night.

I started out today spending well over an hour making up the next round of 3 foam tabs for the GIB headrest surround cover.  I ensured the lengths were correct, sanded the paint/glass in the correlating mounting spots on the headrest structure and inside the turtledeck.  I made cutouts in the foam tabs to allow a flush fit of the #6 platenuts, cut the 1 ply of BID and peel ply for each and then micro’d the platenuts into the foam.  I then laid up the BID, peel plied the layups, and weighed down the glassed foam tabs.

I’m fast-forwarding here about 5 hours to show you the foam tabs after cure & cleanup.  I had sandwiched them between 2 yellow micro spreaders and under a heat lamp to ensure they stayed nice and toasty to cure in a warmer environment.  Well, I must have moved the base of my setup slightly and the heat lamp lip slipped off a wood block I had on one side.  The issue the much closer heat lamp caused was to heat up and soften the top spreader to allow it to lose its downward pressure. This allowed a bit of wonkiness with my nice tight layups… anyway, they are still light and strong as all get out: just ugly! haha

I wanted to get the armpit inlet front ramps’ aluminum vanes cut out and fitted before I glassed the final ramp in place on the aft right inlet.  I had planned on using my band saw but the rubber surface on the bottom wheel broke and made my band saw currently inop.  I resorted to using the Dremel with a cutoff wheel and cut the vanes out of 0.032″ 2024 scrap pieces from my VANs baffle kit.

As a reminder, when I was querying a Defiant builder at RR he said that he used very thin aluminum flashing from Home Depot and that it worked great… whereas James Redmon said to use 0.063″ thick aluminum for the repositionable vanes (the whole reason for using separate aluminum vanes here).  I split the middle on their opinions somewhat with the 0.032″ vanes since I believe it will be plenty strong to withstand the force of the airflow.  If not, I can always increase the thickness (but don’t see having to do that).

I then made the bends in the vanes on the metal brake, simply starting out with the degree of bend that Mike Melvill had labeled on each template: 20° bend on the right side and 15° bend on the left side.

I had already spent well over 30 minutes trimming the aft right ramp to shape to fit in its new position about 3/4″ aft of where Mike Melvill had his aft right ramp.  I had to move this ramp aft a bit to avoid the front cold air induction pipe.  To compensate for the movement aft I will most likely angle the aluminum vane upward more than Melvill had his.

I also took a few minutes to trim about 1/4″ off the bottom of the “U” shaped notch in the right inlet inboard wall to provide clearance with the right front cold air induction pipe.

After cutting the glass and peel ply, and drilling 2 small holes in the inboard wall to support the inside edge of the ramp with thru-rivets, I laid up the glass and then peel plied it.  As I did on the left side I first laid down a bead of micro to provide a smooth transition on the front edge and a significant fillet on the aft side.  I’m using micro vs flox for both weight and also in case I need to reposition this ramp… I wouldn’t want to have to fight removing flox.

With the aft right ramp glassed in place, I then got back to work on the front ramp vanes.  I measured and marked the rivet positions, then drilled those out.  I had to do some fine trimming on the side edges of the vanes to get them to fit, and then I clecoed them into place.

I then countersunk the rivet holes and riveted the vanes in place.  Here we have the right inlet front ramp/vane combo.

And the left inlet riveted front ramp/vane combo as well.  You may note that the outboard side of the left vane was just a hair too wide for my rivet squeezer so I had to resort to a pop rivet.

I spent the last hour in the shop ensuring my final positioning of the cured 3 foam platenut tabs were good before micro’ing them into place.  As you can see I applied protective tape onto the GIB headrest gap cover at the screw positions and ensured that the foam platenut tabs were aligned with the holes in the cover.  I then left the micro’d-in-place foam platenut tabs to cure overnight.

Tomorrow I’ll get the final BID tape laid up on the aft right ramp to officially have those installed, and then finalize the shape, position and install of the aft ramp aluminum vanes.  I’ll also try to get the carbon fiber laid up on the GIB headrest gap cover since for now I’m not spending any more time on the GIB headrest cover in adding more screw positions… sticking with 6 screws total.  After these tasks are done I’ll be positioned to start on the exhaust pipes.
